API 5L Line Pipe

2021-12-03 14:47:47
140次

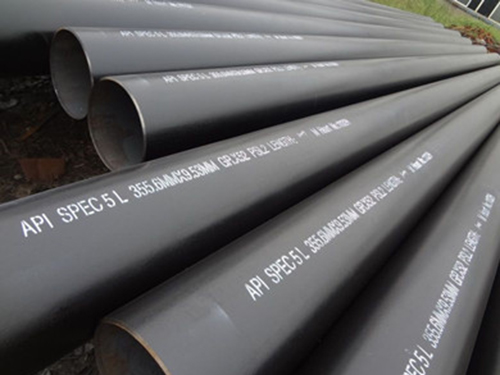

API 5L Line Pipe
Details:

Pipe Type: Line Pipe, API Line Pipe, Carbon Steel Line Pipe

Application: For Fluid Transmission in the Oil and Gas Industry, gas pipeline, oil pipeline, water pipeline

Specification: OD: 219.1mm ~ 610mm

WT: 3.25mm ~ 17.5mm

LENGTH: 0.5mtr ~ 22mtr (5.8/6/11.8/12 meters, SRL, DRL)

Standard & Grade: API 5L PSL1/PSL2, GR.B/X42/X46/X52/X56/X60/X65/X70

End: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosion Coating

Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

For more information, delivery time and prices, please mail us

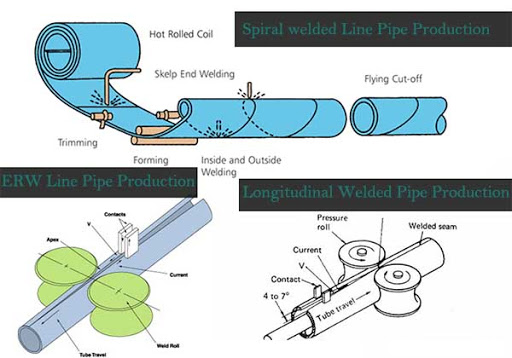

Production Process of API 5L Line Pipe

Toleranceof Outside Diameter

StandardOut DiameterTolerance of Pipe EndTolerance of Pipe Body
API 5L

219.1~273.1

+1.6mm, -0.4mm±0.75%
274.0~320+2.4mm, -0.8mm±0.75%
323.9~457+2.4mm, -0.8mm±0.75%
508+2.4mm, -0.8mm±0.75%
559~610+2.4mm, -0.8mm±0.75%

Toleranceof Wall Thickness

GradeWall Thickness

A+15%, -12.5%

508~610X42-X80+19.5%, -8%

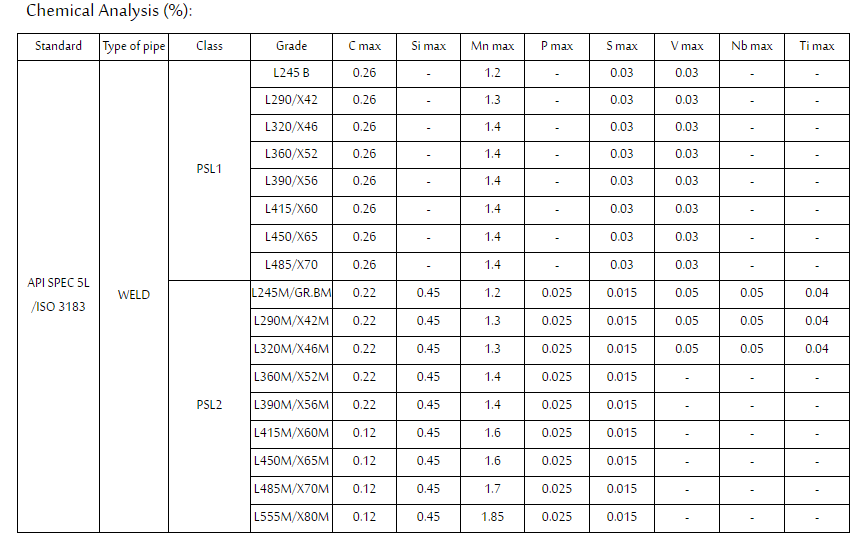

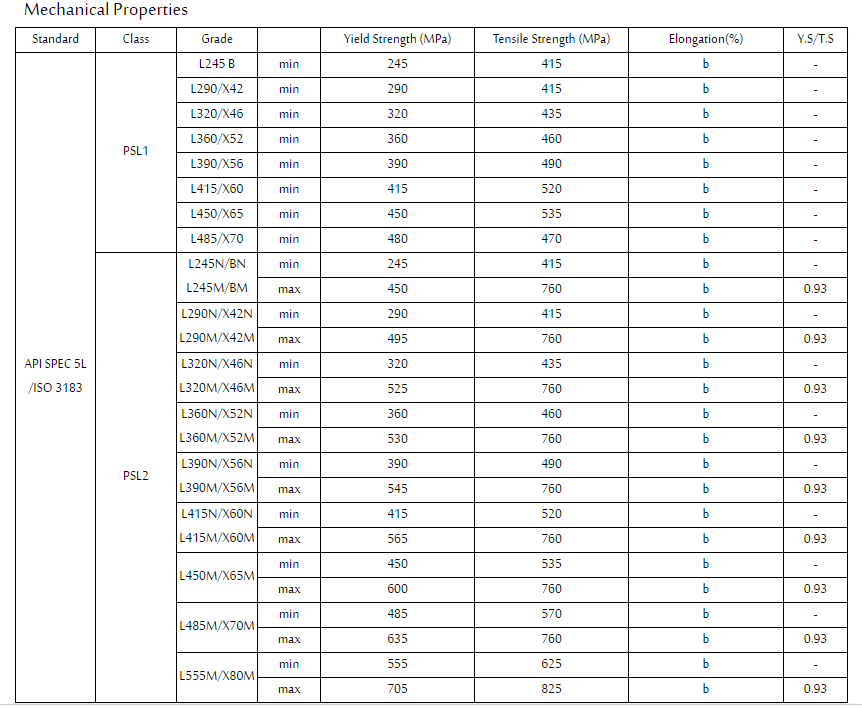

Chemical Analysis & Mechanical Properties of API 5L Line Pipe

Product Advantages

1.We have over 25 years produce and worldwide supply API 5L Line Pipe experience.

2.Our API 5L Line Pipe have joined many projects domestic and oversea.

3.We accept FOB, CIF, L/C payment term.

4.We offer one stop procurement service, we not only supply steel pipes, also provide pipe fittings and flanges with high quality and competitive prices.
